Tuesday, September 08, 2020

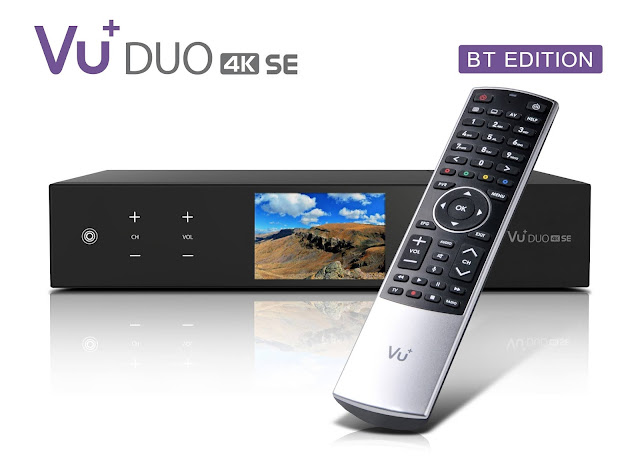

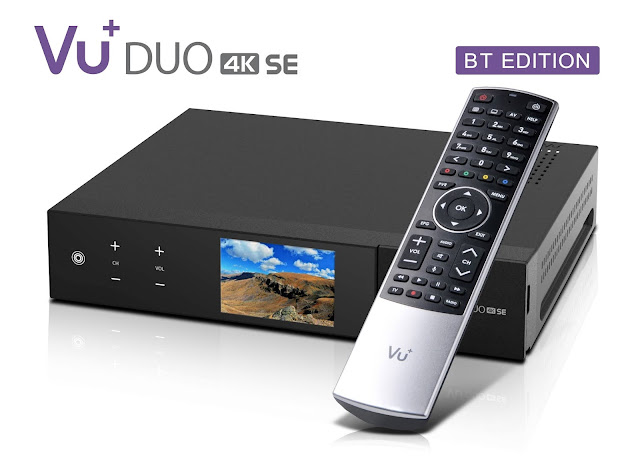

The New VU+ DUO 4K SE


VU+ has just announced the new VU+ DUO 4K SE, a new equipment dedicated for the reception of Digital satellite UHDTV, HDTV and radio programs. This new equipment is powered by an ARM Quad-Core processor also comes equipped with the latest DVB-S2 FBC twin tuner and the new DVB-C FBC tuner and much more »
The heart of the VU + Duo 4K SE is a 1.5ghz ARM Quad-Core processor with 3GB of RAM and 4GB of ROM, Gigabit LAN (10/100/1000 MBit / s) connection, WLAN: IEEE 802.11 b/g/n/ac 2.4/5 GHz integrated, BT 4.1, 2x USB 3.0 (rear) and 1x USB 2.0 (front), 2x DVB common interface slot (simultaneous use possible) and 1x smart card reader (Xcrypt), 1 HDMI 2.0 output and 1 HDMI 2.0 input.

A DVB-S2 FBC twin tuner has 8 demodulators.


With two conventional (eg twin LNB) satellite feed lines, the tuner can be compared with 2 conventional and 6 additional tuners that work in loop-through mode. You can watch, stream or record channels from 8 different transponders from 2 different satellite levels at the same time. In SCR (Unicable) mode with 8 frequencies, this corresponds to 8 conventional tuners.

What is a DVB-C FBC tuner?


A DVB-C FBC tuner has 8 demodulators. This corresponds to a receiver with 8 conventional DVB-C tuners. You can watch, stream or record 8 stations at the same time.

Technical highlights:
  • 1,500 MHz ARM QuadCore processor
  • 4096 MB Flash (eMMC)
  • 3072 MB RAM
  • Gigabit LAN (10/100/1000 MBit / s)
  • WLAN: IEEE 802.11 b / g / n / ac 2.4 / 5 GHz integrated
  • BT 4.1 integrated for e.g. BT soundbars or headphones
  • 2x DVB common interface slot (simultaneous use possible)
  • 1x smart card reader (Xcrypt)
  • 2x USB 3.0 (rear)
  • 1x USB 2.0 (front)
  • 3.5 "TFT LCD display - MiniTV
  • S / PDIF audio output optical (digital)
  • 1x HDMI 2.0 video / audio output (digital)
  • 1x HDMI 2.0 video / audio input (digital)
  • unlimited channel list for TV and radio
  • EPG (Electronic Program Guide) support
  • Support of bouquet lists (favorites lists)
  • OSD in many languages
  • The appearance of the user interface can be varied in various ways (skin support)
  • Expandable with many free plugins (apps)
  • automatic / manual channel search
  • DiSEqC 1.0 / 1.1 / 1.2, USALS
  • SCR / dCSS (EN50494 & EN50607)
  • External 12 volt power supply
  • Power switch
  • RS232 service interface
  • Free apps available for iOS and Android
Main features:
  • Very fast switching times
  • WebKit browser
  • Chromium OS
  • Dual HD transcoding
  • HbbTV
  • HDMI 2.0 output
  • HDMI 2.0 input
  • Gigabit LAN
  • DualBand WiFi (2.4 / 5 GHz)
  • Wake on Wireless LAN (WoWL)
  • Simultaneous decryption of 2 CI modules
  • BT 4.1 for e.g. BT soundbars or headphones
  • 3.5 "TFT LCD display - MiniTV
  • 2x tuner slot for e.g. DVB-S2/ DVB-C * Full Band Capture (FBC) or DVB-T2 dual tuner
  • USB 3.0
  • ARM CPU (4x 1,500 MHz)
  • eMMC flash memory
  • HEVC / H.265 video decoding
  • Plug & Play removable frame for 2.5 "SATA hard disks (max. 15 mm HDD height)
  • External 12 V power supply
Video decoding:
  • Video compression HVEC / H.265, MPEG-2 / H.264 and MPEG-1 compatible
  • Video standard PAL G / 25 Hz, NTSC
  • Aspect ratio 4: 3/16: 9
  • Letterbox for 4: 3 TV sets
Output digital:
  • Sampling frequencies 32 kHz, 44.1 kHz, 48 kHz
  • S / PDIF output optical (AC3)
  • Audio compression MPEG-1 & MPEG-2 Layer I and II, MP3
  • Audio mode dual (main / sub), stereo
  • Sampling frequencies 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

The new VU+ DUO 4K SE is already on pre-sale and it will cost 369€ and also there will be another version with a more advanced Bluetooth remote that it will be more expensive.
